PUREDATA

PDE8023PLUS-32CT

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Data Bus

32-bit EISA

Topology

Linear Bus, Star

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Boot ROM

Available

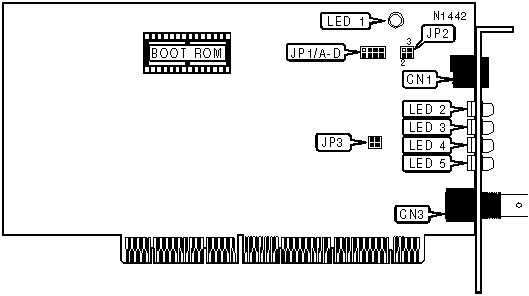

CONNECTIONS

Function

Label

Function

Label

RJ-45/10BASE-T

CN1

RG-58A/U 50ohm coaxial/10BASE2

CN2

WIRING TYPE SELECTION

Setting

JP1/A

JP1/B

JP1/C

JP1/D

Software selectable

Closed

Open

Open

Open

10BASE-T

Open

Closed

Open

Open

10BASE5

Open

Open

Closed

Open

10BASE2

Open

Open

Open

Closed

LINK INTEGRITY

Function

JP2

»

Link integrity function enabled

Pins 1 & 2 closed



Link integrity function disabled

Pins 3 & 4 closed

NETWORK DISTANCE CONFIGURATION FOR 10BASE-2

Distance

JP3

=<185 meters

Pins 1 & 2 closed

Extended segment lengths =<300 meters

Pins 3 & 4 closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED 1

Red

On

Network collision detected

LED 1

Red

Off

Network collision not detected

LED 2

Red

On

Communicating with local DTE

LED 2

Red

Off

Not communicating with local DTE

LED 3

Green

On

Network activity detected

LED 3

Green

Off

Network activity not detected

LED 4

Red

On

Polarity is reversed

LED 4

Red

Off

Polarity is normal

LED 5

Green

On

Link integrity is good

LED 5

Green

Off

Link integrity is broken
