RACAL INTERLAN, INC.

INTERLAN PCI 4T/4TS

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

PCI

Topology

Star

Wiring Type

Unshielded twisted pair

Boot ROM

Not available

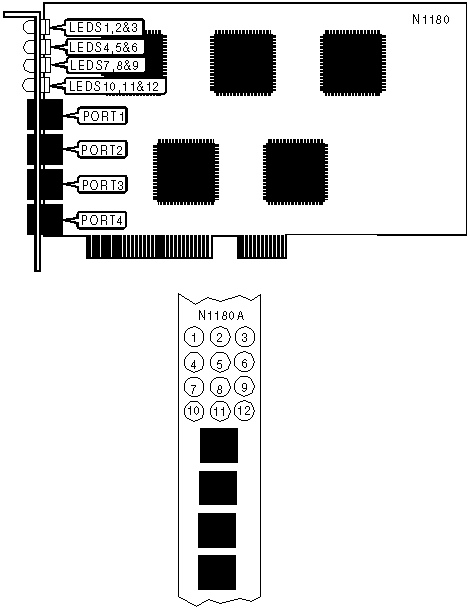

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Data is being transmitted/received on Port1

LED1

Yellow

Off

Data is not being transmitted received on Port1

LED2

Green

On

Network connection is good on Port1

LED2

Green

Off

Network connection is broken on Port1

LED3

Yellow

On

Full duplex mode enabled on Port1

LED3

Yellow

Off

Full duplex mode disabled on Port1

LED4

Yellow

On

Data is being transmitted/received on Port2

LED4

Yellow

Off

Data is not being transmitted received on Port2

LED5

Green

On

Network connection is good on Port2

LED5

Green

Off

Network connection is broken on Port2

LED6

Yellow

On

Full duplex mode enabled on Port2

LED6

Yellow

Off

Full duplex mode disabled on Port2

LED7

Yellow

On

Data is being transmitted/received on Port3

LED7

Yellow

Off

Data is not being transmitted received on Port3

LED8

Green

On

Network connection is good on Port3

LED8

Green

Off

Network connection is broken on Port3

LED9

Yellow

On

Full duplex mode enabled on Port3

LED9

Yellow

Off

Full duplex mode disabled on Port3

LED10

Yellow

On

Data is being transmitted/received on Port4

LED10

Yellow

Off

Data is not being transmitted received on Port4

LED11

Green

On

Network connection is good on Port4

LED11

Green

Off

Network connection is broken on Port4

LED12

Yellow

On

Full duplex mode enabled on Port4

LED12

Yellow

Off

Full duplex mode disabled on Port4
