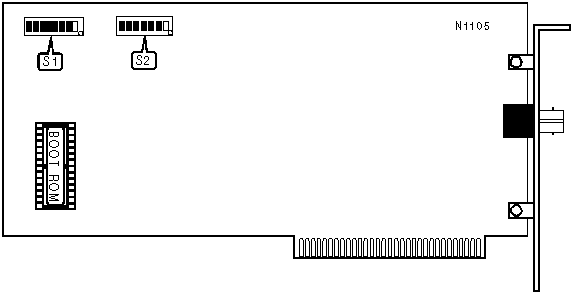

RAD DATA COMMUNICATIONS

TRIC-FO

NIC Type

Token Ring

Transfer Rate

4/16Mbps

Data Bus

8-bit ISA

Topology

Ring

Wiring Type

Fiber optic cable

Boot ROM

Available

CABLE TYPE SELECTION

Cable Type

S2/3

Shielded twisted pair

On

Unshielded twisted pair

Off

BASE I/O ADDRESS SELECTION

Address

S1/1

S1/2

A00h

On

On

A20h

Off

On

A40h

On

Off

A60h

Off

Off

INTERRUPT SELECTION

IRQ

S1/3

S1/4

IRQ2

Off

On

IRQ3

On

On

IRQ10

On

Off

IRQ11

Off

Off

DMA CHANNEL SELECTION

Channel

S1/7

S1/8

DMA0

On

On

DMA5

Off

On

DMA6

On

Off

DMA7

Off

Off

NETWORK SPEED SELECTION

Speed

S2/2

4Mbps

Off

16Mbps

On

SHARED RAM CONFIGURATION

Address

S1/5

S1/6

CC00h

On

On

D000h

Off

On

D800h

On

Off

DC00h

Off

Off

BOOT ROM CONFIGURATION

Select

S2/4

Enabled

Off

Disabled

On

RPL CONFIGURATION

Select

S2/1

Enabled

Off

Disabled

On

A13 CONFIGURATION

Select

S2/5

8K

On

16K

Off

CLOCK CONFIGURATION

Select

S2/7

Internal 8Mhz

On

Bus clock

Off

BURST CONFIGURATION

Select

S2/6

Minimum

On

Maximum

Off
