RAGULA SYSTEMS

100VG ISA ADAPTER CARD

NIC Type

Ethernet

Transfer Rate

10/100Mbps

Data Bus

16-bit ISA

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

Boot ROM

Unidentified

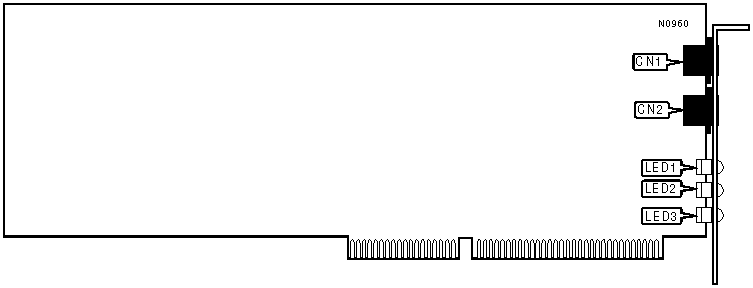

CONNECTIONS

Location

Function

CN1

10Mbps Ethernet connector

CN2

100Mbps Ethernet connector

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

100Mbps connection is good

LED1

Green

Off

100Mbps connection is broken

LED1 & LED2

Green

On

10Mbps connection is good

LED1 & LED2

Green

Off

10Mbps connection is broken

LED3

Yellow

Blinking

Data is being transmitted/received

LED3

Yellow

Off

Data is not being transmitted/received

Note: The brightness of LED3 indicates traffic volume.
