RACAL INTERLAN, INC.

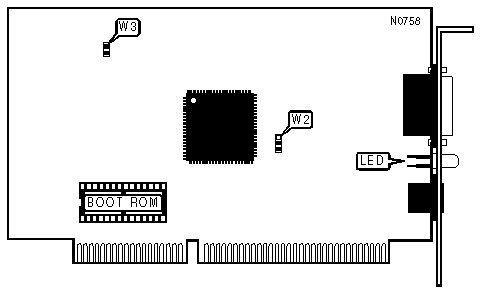

INTERLAN ETHERBLASTER REV. AA

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear bus

Wiring Type

RG-58A/U 50ohm coaxial

Unshielded twisted pair

Boot ROM

Available

I/O ADDRESS CONFIGURATION

Address

W2

»

300h

Open



Software configured

Closed

DATA BUS SIZE

Size

W3

»

16-bit

Pins 2 & 3 closed



8-bit

Pins 1 & 2 closed

DIAGNOSTIC LED

Color

Status

Condition

Green

On/Blinking

Network connection is good

Green

Off

Network connection is broken
