PROTEON, INC.
PRONET-10 P1300V2/P1303V2
|

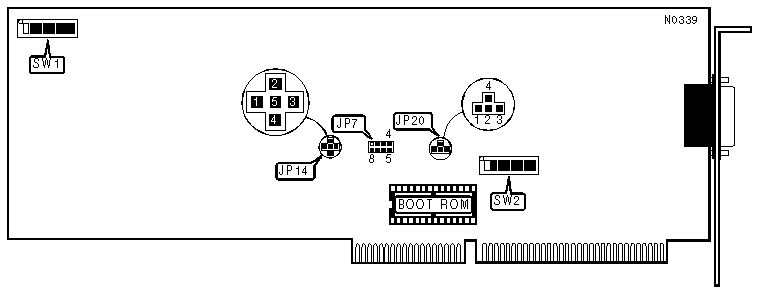

NIC Type |
ARCnet |
|
Transfer Rate |
2.5Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
NODE ADDRESS | ||||||||
|
Node |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
0 |
- |
- |
- |
- |
- |
- |
- |
- |
|
1 |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
2 |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
3 |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
4 |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
251 |
On |
On |
Off |
On |
On |
On |
On |
On |
|
252 |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
253 |
On |
Off |
On |
On |
On |
On |
On |
On |
|
254 |
Off |
On |
On |
On |
On |
On |
On |
On |
|
255 |
On |
On |
On |
On |
On |
On |
On |
On |
|
Note:Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn on the switches and add the values of the on switches to obtain the correct node address. (On=1, Off=0) | ||||||||
|
INTERRUPT REQUEST | ||
|
IRQ |
JP22 | |
| » |
2 |
Pins 2 & 5 Closed |
|
3 |
Pins 1 & 5 Closed | |
|
4 |
Pins 4 & 5 Closed | |
|
5 |
Pins 3 & 5 Closed | |
|
Disabled |
Open | |
|
BOOT ROM ADDRESS | |||||
|
ROM Address |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 | |
|
C0000h |
On |
On |
On |
On | |
|
C4000h |
On |
On |
On |
Off | |
|
C8000h |
On |
On |
Off |
On | |
|
CC000h |
On |
On |
Off |
Off | |
|
D0000h |
On |
Off |
On |
On | |
|
D4000h |
On |
Off |
On |
Off | |
| » |
D8000h |
On |
Off |
Off |
On |
|
DC000h |
On |
Off |
Off |
Off | |
|
E0000h |
Off |
On |
On |
On | |
|
E4000h |
Off |
On |
On |
Off | |
|
E8000h |
Off |
On |
Off |
On | |
|
EC000h |
Off |
On |
Off |
Off | |
|
F0000h |
Off |
Off |
On |
On | |
|
F4000h |
Off |
Off |
On |
Off | |
|
F8000h |
Off |
Off |
Off |
On | |
|
FC000h |
Off |
Off |
Off |
Off | |
|
I/O BASE ADDRESS | ||||
|
I/O Address |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
300h |
On |
On |
On |
On |
|
308h |
On |
On |
On |
Off |
|
310h |
On |
On |
Off |
On |
|
318h |
On |
On |
Off |
Off |
|
320h |
On |
Off |
On |
On |
|
328h |
On |
Off |
On |
Off |
|
330h |
On |
Off |
Off |
On |
|
338h |
On |
Off |
Off |
Off |
|
340h |
Off |
On |
On |
On |
|
348h |
Off |
On |
On |
Off |
|
350h |
Off |
On |
Off |
On |
|
358h |
Off |
On |
Off |
Off |
|
360h |
Off |
Off |
On |
On |
|
368h |
Off |
Off |
On |
Off |
|
370h |
Off |
Off |
Off |
Off |
|
378h |
Off |
Off |
Off |
Off |
|
DMA CHANNEL | |||
|
DMA Channel |
JP7 |
JP20 | |
| » |
DMA1 |
Pins 3 & 4 and 2 & 7 Closed |
Pins 2 & 4 Closed |
|
DMA2 |
Pins 3 & 4 and 1 & 8 Closed |
Pins 1 & 2 Closed | |
|
DMA3 |
Pins 3 & 4 and 5 & 6 Closed |
Pins 2 & 3 Closed | |
|
Disabled |
Open |
Open | |
