OLICOM, INC.

RAPIDFIRE 3141

Card Type

Network Interface Card

NIC Type

Token Ring

Maximum Onboard Memory

32KB

Boot ROM

Available

Network Transfer Rate

16Mbps/4Mbps

Topology

Ring

Wiring Type

Fiber optic cable

Data Bus

64-bit PCI

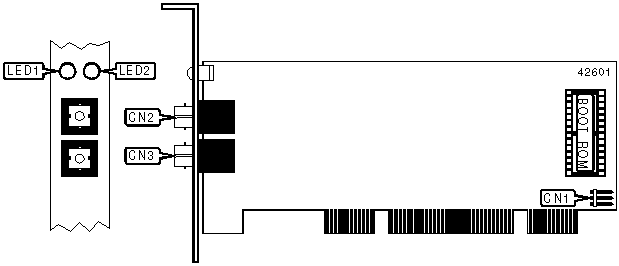

CONNECTIONS

Function

Label

Function

Label

Wake-on-LAN connector

CN1

Fiber optic connector (ST)

CN3

Fiber optic connector (ST)

CN2



DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection is good

LED1

Green

Off

Network connection is not good

LED2

Yellow

On

Operating at 4Mbps

LED2

Yellow

Off

Operating at 16Mbps
