Card Type	Network Interface Card
NIC Type	Token Ring
Maximum Onboard Memory	32KB
Boot ROM	Available
Network Transfer Rate	16Mbps/4Mbps
Topology	Ring
Wiring Type	Shielded twisted pair Unshielded twisted pair
Data Bus	64-bit PCI

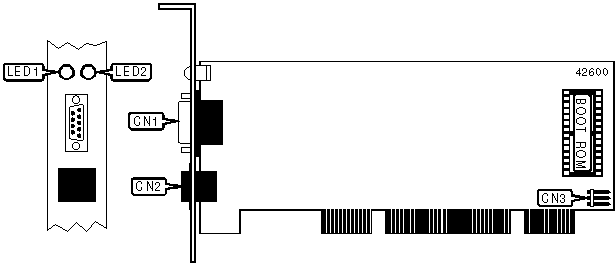

CONNECTIONS
Function	Label	Function	Label
DB-9 STP connector	CN1	Wake-on-LAN connector	CN3
RJ-45 UTP connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Network connection is good
LED1	Green	Off	Network connection is not good
LED2	Yellow	On	Operating at 4Mbps
LED2	Yellow	Off	Operating at 16Mbps
