MACROMATE CORPORATION
MT-950FX/SC
|
Card Type |
Ethernet Transceiver |
|
NIC Type |
Ethernet |
|
Network Transfer Rate |
100Mbps (half-duplex), 200Mbps (full-duplex) |
|
Topology |
Linear Bus |
|
Wiring Type |
MII transceiver via 40-pin port Fiber optic cable |
|
Data Bus |
External |
|

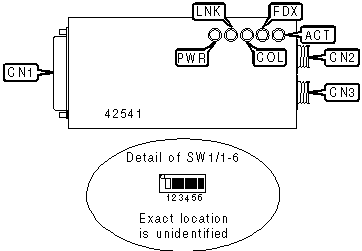

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
MII transceiver via 40-pin port |
CN1 |
Fiber optic connector (SC) - Transmit |
CN3 |
|
Fiber optic connector (SC) - Receive |
CN2 |
|
|
|
USER CONFIGURABLE SETTINGS |
||
|
Function |
Label |
Position |
|
» Full-duplex mode enabled |
SW1/6 |
Off |
|
Half-duplex mode enabled |
SW1/6 |
On |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
PWR |
Green |
On |
Power being received from MII connector |
|
PWR |
Green |
Off |
Power not being received |
|
LNK |
Green |
On |
Link is good |
|
LNK |
Green |
Off |
Link is broken |
|
COL |
Amber |
Blinking |
Collision detected on network |
|
COL |
Amber |
Off |
No collision detected on network |
|
FDX |
Green |
On |
Receiving full-duplex transmission |
|
FDX |
Green |
Off |
Receiving half-duplex transmission |
|
ACT |
Green |
Blinking |
Data is being transmitted |
|
ACT |
Green |
Off |
Data is not being transmitted |
|
PHY ADDRESS SETTINGS |
|||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
|
0 |
On |
On |
On |
On |
On |
|
1 |
Off |
On |
On |
On |
On |
|
2 |
On |
Off |
On |
On |
On |
|
3 |
Off |
Off |
On |
On |
On |
|
4 |
On |
|
Off |
On |
On |
|
5 |
Off |
On |
Off |
On |
On |
|
6 |
On |
Off |
Off |
On |
On |
|
7 |
Off |
Off |
Off |
On |
On |
|
8 |
On |
On |
On |
Off |
On |
|
9 |
Off |
On |
On |
Off |
On |
|
10 |
On |
Off |
On |
Off |
On |
|
11 |
Off |
Off |
On |
Off |
On |
|
12 |
On |
On |
Off |
Off |
On |
|
13 |
Off |
On |
Off |
Off |
On |
|
14 |
On |
Off |
Off |
Off |
On |
|
15 |
Off |
Off |
Off |
Off |
On |
|
16 |
On |
On |
On |
On |
Off |
|
17 |
Off |
On |
On |
On |
Off |
|
18 |
On |
Off |
On |
On |
Off |
|
19 |
Off |
Off |
On |
On |
Off |
|
20 |
On |
On |
Off |
On |
Off |
|
21 |
Off |
On |
Off |
On |
Off |
|
22 |
On |
Off |
Off |
On |
Off |
|
23 |
Off |
Off |
Off |
On |
Off |
|
24 |
On |
On |
On |
Off |
Off |
|
25 |
Off |
On |
On |
Off |
Off |
|
26 |
On |
Off |
On |
Off |
Off |
|
27 |
Off |
Off |
On |
Off |
Off |
|
28 |
On |
On |
Off |
Off |
Off |
|
29 |
Off |
On |
Off |
Off |
Off |
|
» 30 |
On |
Off |
Off |
Off |
Off |
|
31 |
Off |
Off |
Off |
Off |
Off |
