Card Type

Ethernet Transceiver

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Topology

Linear Bus

Wiring Type

RG-58A/U 50ohm coaxial

Data Bus

External

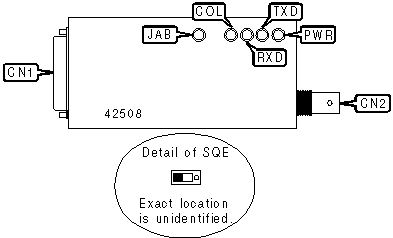

CONNECTIONS

Function

Label

Function

Label

AUI transceiver via DB-15

CN1

RG-58A/U BNC connector

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

» Signal Quality Error function disabled

SQE

Off

Signal Quality Error function enabled

SQE

On

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

PWR

Green

On

Power being received from AUI connector

PWR

Green

Off

Power not being received

TXD

Green

Blinking

Data is being transmitted

TXD

Green

Off

Data is not being transmitted

RXD

Green

Blinking

Data is being received

RXD

Green

Off

Data is not being received

COL

Amber

On

Collision detected on network

COL

Amber

Off

No collision detected on network

JAB

Amber

On

A frame greater than 1518 bytes is being transmitted

JAB

Amber

Off

Transmission is normal
