NESTAR SYSTEMS, INC.

PLAN 2000 NIC

NIC Type

Plan 2000 (proprietary)

Network Transfer Rate

Unidentified

Data Bus

8-bit ISA

Topology

Star

Wire Type

RG-62A/U 93ohm coaxial

Boot ROM

Available

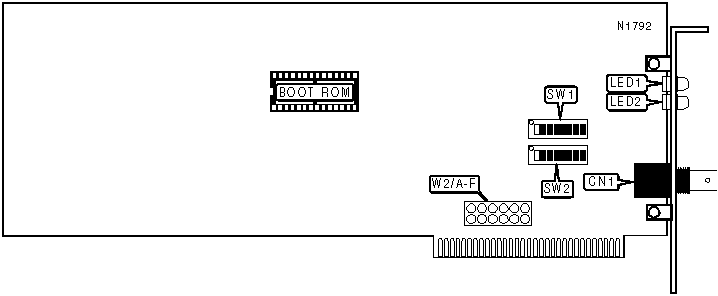

CONNECTIONS

Function

Label

RG-62A/U 93ohm coaxial connector

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

SW2/8

Unidentified

NODE ADDRESS

Setting

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

SW1/7

SW1/8

1

Off

On

On

On

On

On

On

On

2

On

Off

On

On

On

On

On

On

3

Off

Off

On

On

On

On

On

On

4

On

On

Off

On

On

On

On

On

5

Off

On

Off

On

On

On

On

On

251

Off

Off

On

Off

Off

Off

Off

Off

252

On

On

Off

Off

Off

Off

Off

Off

253

Off

On

Off

Off

Off

Off

Off

Off

254

On

Off

Off

Off

Off

Off

Off

Off

255

Off

Off

Off

Off

Off

Off

Off

Off

Note: A total of 254 node address settings are available. The switches are a binary representation of the decimal node addresses. SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: SW1/8=128, SW1/7=64, SW1/6=32, SW1/5=16, SW1/4=8, SW1/3=4, SW1/2=2, SW1/1=1. Turn off the switches and add the values of the switches that are off to obtain the correct node ID. (Off=1, On=0)

Node addresses 0 and 255 are reserved and should not be used.

On some versions of this card, SW1 may be a one-use shunt instead of a switch.

SHARED RAM ADDRESS

Setting

SW2/1

SW2/2

SW2/3

SW2/4

SW2/5

SW2/6

SW2/7

0000h

On

On

On

On

On

On

On

0400h

On

On

On

On

On

On

Off

0800h

On

On

On

On

On

Off

On

0C00h

On

On

On

On

On

Off

Off

1000h

On

On

On

On

Off

On

On

D200h

Off

Off

On

Off

On

On

Off

EC00h

Off

Off

Off

Off

On

Off

Off

F000h

Off

Off

Off

Off

Off

On

On

F400h

Off

Off

Off

Off

Off

On

Off

F800h

Off

Off

Off

Off

Off

Off

On

FC00h

Off

Off

Off

Off

Off

Off

Off

Note: A total of 128 memory address settings are available. The switches are a binary representation of the decimal memory addresses. SW2/1 is the Most Significant Bit and switch SW2/7 is the Least Significant Bit. The switches have the following decimal values: SW2/1=65,536, SW2/2=85=32,768, SW2/3=16,384, SW2/4=8,192, SW2/5=4,096, SW2/6=2,048, SW2/7=1,024. Turn off the switches and add the values of the switches that are off to obtain the correct address. (Off=1, On=0)

On some versions of this card, SW2 may be a one-use shunt instead of a switch.

INTERRUPT

Setting

W2/A

W2/B

W2/C

W2/D

W2/E

W2/F

IRQ2

Closed

Open

Open

Open

Open

Open

IRQ3

Open

Closed

Open

Open

Open

Open

IRQ4

Open

Open

Closed

Open

Open

Open

IRQ5

Open

Open

Open

Closed

Open

Open

IRQ6

Open

Open

Open

Open

Closed

Open

IRQ7

Open

Open

Open

Open

Open

Closed

Note:W2 is a set of solder contacts. To change the interrupt, you must cut the trace on W2/A andhard-wire a jumper with a soldering gun.

DIAGNOSTIC LED(S)

The functions and colors of the LEDs are unidentified.
