MICOM-INTERLAN, INC.

NI5010-1

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Data Bus

8-bit ISA

Topology

Linear Bus

Wiring Type

AUI transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Available

CONNECTIONS

Function

Label

Function

Label

RG-58A/U 50ohm coaxial port

CN1

AUI transceiver via DB-15 port

CN2

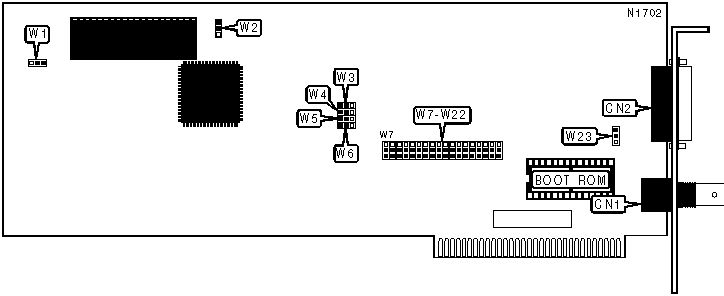

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Receive Buffer size selected at 2KB

W1

Pins 2 & 3 closed



Receive Buffer size selected at 8KB

W1

Pins 1 & 2 closed

»

Transceiver type AC

W2

Pins 2 & 3 closed



Transceiver type DC

W2

Pins 1 & 2 closed

»

IRQ3 enabled

W7

Pins 2 & 3 closed



IRQ3 disabled

W7

Pins 1 & 2 closed

DMA CHANNEL SELECTION

DMA

W8

W14

»

3

Pins 2 & 3 closed

Pins 1 & 2 closed

»

1

Pins 1 & 2 closed

Pins 2 & 3 closed



Disabled

Pins 2 & 3 closed

Pins 2 & 3 closed

BASE I/O ADDRESS SELECTION

Setting

W9

W10

W11

W12

W13



200h

2 & 3

2 & 3

2 & 3

2 & 3

1 & 2



220h

1 & 2

2 & 3

2 & 3

2 & 3

1 & 2



240h

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2



260h

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2



280h

2 & 3

2 & 3

1 & 2

2 & 3

1 & 2



2A0h

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2



2C0h

2 & 3

1 & 2

1 & 2

2 & 3

1 & 2



2E0h

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

»

300h

2 & 3

2 & 3

2 & 3

1 & 2

1 & 2



320h

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2



340h

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2



360h

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2



380h

2 & 3

2 & 3

1 & 2

1 & 2

1 & 2



3A0h

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2



3C0h

2 & 3

1 & 2

1 & 2

1 & 2

1 & 2



3E0h

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

Note: The pins designated above should be in the closed position.

CABLE TYPE SELECTION

Type

W3

W4

W5

W6

W23

»

RG-58A/U 50ohm coaxial

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3



AUI transceiver via DB-15 port

1 & 2

1 & 2

1 & 2

1 & 2

1 & 2

Note: The pins designated should be in the closed position.

BOOT ROM STARTING ADDRESS SELECTION

Address

W15

W16

W17

W18

W19

W20

W21

W22

»

Disabled

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3

2 & 3



C8000h

2 & 3

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2



C9000h

1 & 2

2 & 3

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2



CA000h

2 & 3

1 & 2

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2



CB000h

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2



CC000h

2 & 3

2 & 3

1 & 2

1 & 2

2 & 3

2 & 3

1 & 2

1 & 2



EB000h

1 & 2

1 & 2

2 & 3

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2



EC000h

2 & 3

2 & 3

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2



ED000h

1 & 2

2 & 3

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2



EE000h

2 & 3

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2



EF000h

1 & 2

1 & 2

1 & 2

1 & 2

2 & 3

1 & 2

1 & 2

1 & 2

Note:The pins designated should be in the closed position.

Note:A total of 40 base address settings are available. The switches are a binary representation of the decimal memory addresses. W22 is the Most Significant Bit and switch W15 is the Least Significant Bit. The switches have the following decimal values: W22=524288, W21=262144, W20=131072, W19=65536, W18=32768, W17=16384, W16=8192, and W15=4096. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=1, On=0)
