MADGE NETWORKS, LTD.

SMART 16/4 AT HUBCARD

Card Type

Network Interface Card

NIC Type

Token Ring

Network Transfer Rate

16Mbps/4Mbps

Data Bus

8/16-bit ISA

Topology

Ring

Wiring Type

Unshielded twisted pair

Boot ROM

Not available

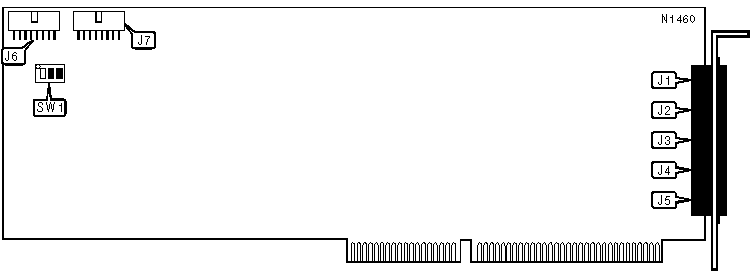

CONNECTIONS

Function

Label

Function

Label

Lines 1 & 2 out

J1

Lines 9 & 10 out

J5

Lines 3 & 4 out

J2

Daisy-chain out

J6

Lines 5 & 6 out

J3

Daisy-chain in

J7

Lines 7 & 8 out

J4



Note: To access both lines, a splitter cable must be used. With the normal wiring, only the odd-numbered lines may be accessed.

BASE I/O ADDRESS

Setting

SW1/1

SW1/2

SW1/3

8A20h

Off

Off

Off

9A20h

On

Off

Off

AA20h

Off

On

Off

BA20h

On

On

Off

CA20h

Off

Off

On

DA20h

On

Off

On

EA20h

Off

On

On

FA20h

On

On

On
