OLIVETTI
NCU 9142 ASSY 7920-XX
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
AUI Transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

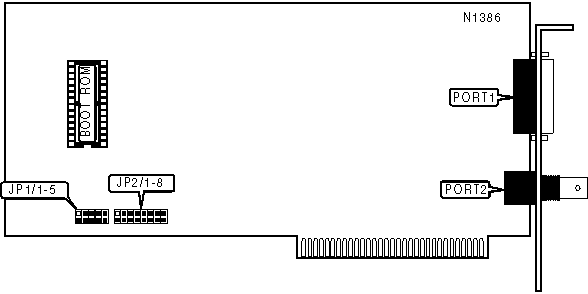

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
AUI Transceiver via DB-15 port |
PORT1 |
G-58A/U 50ohm coaxial port |
PORT2 |
|
BIOS ADDRESS SELECTION | ||||||
|
Address |
JP1/1 |
JP1/2 |
JP1/3 |
JP1/4 |
JP1/5 | |
| » |
Disabled |
Closed |
Open |
Open |
Open |
Open |
|
DC000h |
Open |
Closed |
Open |
Open |
Open | |
|
D8000h |
Open |
Open |
Closed |
Open |
Open | |
|
CC000h |
Open |
Open |
Open |
Closed |
Open | |
|
C8000h |
Open |
Open |
Open |
Open |
Closed | |
|
BASE I/O ADDRESS SELECTION | |||||||||
|
Address |
JP2/1 |
JP2/2 |
JP2/3 |
JP2/4 |
JP2/5 |
JP2/6 |
JP2/7 |
JP2/8 | |
| » |
300h |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
310h |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
330h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
350h |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
250h |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
280h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
2A0h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
2E0h |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
