OLICOM, INC.

OC-2173

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

AUI Transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Available

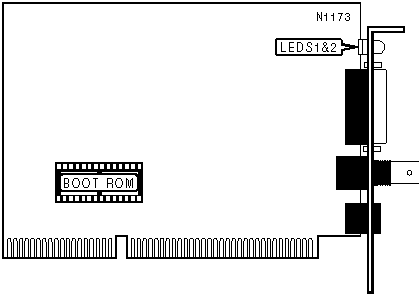

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Network activity is detected

LED1

Yellow

Off

Network activity is not detected

LED2

Green

On

Network connection is good

LED2

Green

Off

Network connection is broken
