NETWORTH, INC.

ISA HUBCARD

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Star

Wiring Type

Unshielded twisted pair (located on external box)

Boot ROM

Not available

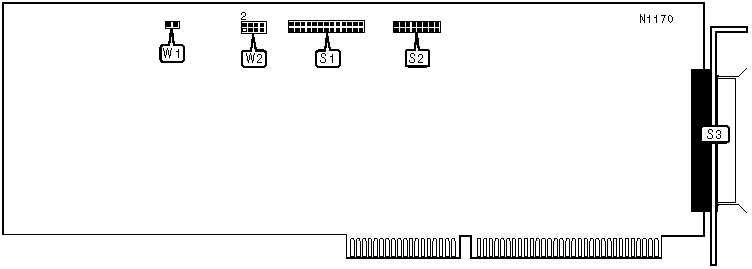

CONNECTIONS

Purpose

Location

Daisy-chain cable form another board connector

S1

Physical Media Extender board connector

S2

Proprietary Telco 50-pin connector

S3

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

W1

Closed

W2

pins 1 & 2 closed
