OCEAN INFORMATION SYSTEMS, INC.

ETHERNET-2000+3 LAN ADAPTER

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Star

Wiring Type

Unshielded twisted pair

AUI Transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Available

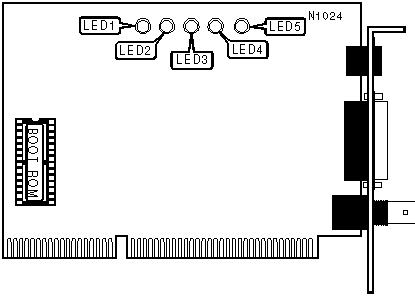

DIAGNOSTIC LED(S)

LED

Status

Condition

LED1

On

Card is transmitting

LED1

Off

Card is not transmitting

LED2

On

Card is receiving

LED2

Off

Card is not receiving

LED3

On

Collision detected

LED3

Off

Collision not detected

LED4

On

Polarity is reversed

LED4

Off

Polarity is normal

LED5

On

Link status OK

LED5

Off

Link status broken
