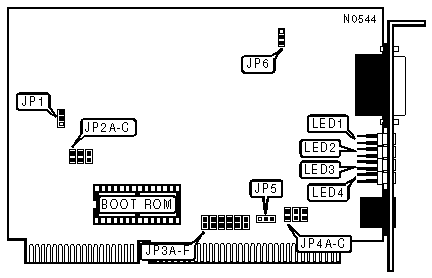

NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear bus
Wiring Type	Unshielded twisted pair AUI transceiver via DB-15 port
Boot ROM	Available

COMPATIBILITY MODE
Setting		JP1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed
Note:On some systems, the data bus timing is not fully IBM PC/AT compatible (including some systems that use the Chips and Technologies chipset). If the card is not initializing, enabling the compatibility mode may allow the card to operate normally.

I/O BASE ADDRESS
Address		JP2A	JP2B	JP2C
	200 - 21Fh	Open	Closed	Closed
	220 - 23Fh	Open	Closed	Open
	240 - 25Fh	Open	Open	Closed
	260 - 27Fh	Open	Open	Open
»	300 - 31Fh	Closed	Closed	Closed
	320 - 33Fh	Closed	Closed	Open
	340 - 35Fh	Closed	Open	Closed
	360 - 37Fh	Closed	Open	Open

INTERRUPT REQUEST
IRQ		JP3A	JP3B	JP3C	JP3D	JP3E	JP3F
	2/9	Open	Open	Open	Open	Open	Closed
»	3	Closed	Open	Open	Open	Open	Open
	4	Open	Closed	Open	Open	Open	Open
	5	Open	Open	Closed	Open	Open	Open
	6	Open	Open	Open	Closed	Open	Open
	7	Open	Open	Open	Open	Closed	Open

BOOT ROM ADDRESS
Address		JP4A	JP4B	JP4C
	C000h	Closed	Closed	Closed
	C400h	Closed	Closed	Open
	C800h	Closed	Open	Closed
	CC00h	Closed	Open	Open
»	D000h	Open	Closed	Closed
	D400h	Open	Closed	Open
	D800h	Open	Open	Closed
	DC00h	Open	Open	Open

BOOT ROM
Setting		JP5
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

CABLE TYPE
Type		JP6
»	Unshielded twisted pair	Pins 2 & 3 closed
	AUI transceiver via DB-15 port	Pins 1 & 2 closed

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	Blinking	Data is being transmitted
LED1	Off	Data is not being transmitted
LED2	Blinking	Data is being received
LED2	Off	Data is not being received
LED3	On	Collision detected on network
LED3	Off	No collisions detected on network
LED4	On	Card is receiving power
LED4	Off	Card is not receiving power
