LANCAST

4304-2-1

Card Type

Transceiver

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Topology

Star

Wiring Type

AUI transceiver via DB-15 port, RG-62A/U 93ohm coaxial (2)

Data Bus

External

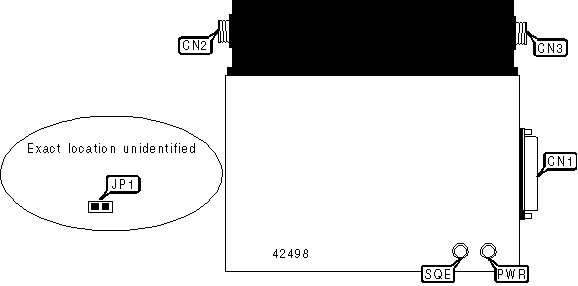

CONNECTIONS

Function

Label

Function

Label

AUI transceiver via DB-15

CN1

RG-62A/U 93ohm coaxial

CN3

RG-62A/U 93ohm coaxial

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

í Signal Quality Error signal disabled (Heartbeat Test Option)

JP1

Open

Signal Quality Error signal enabled (Heartbeat Test Option)

JP1

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

PWR

Green

On

Power is on

PWR

Green

Off

Power is off

SQE

Yellow

On

Unit is sending a short collision signal

SQE

Yellow

Off

Signal Quality Error signal is inactive
