LANCAST

6221-02

Card Type

Transceiver

NIC Type

Ethernet

Network Transfer Rate

100Mbps

Topology

Star

Wiring Type

Fiber optic cable (2), Media Independent Interface (MII)

Data Bus

External

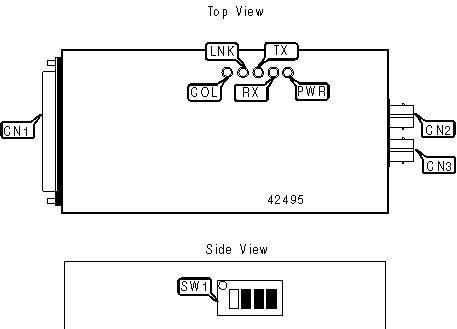

CONNECTIONS

Function

Label

Function

Label

40-pin MII interface

CN1

Fiber optic ST connector - transmit

CN3

Fiber optic ST connector - receive

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

Half-Duplex mode

SW1/1

On

Full-Duplex mode

SW1/1

Off

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

PWR

Unidentified

On

Power is being received from the DTE device

PWR

Unidentified

Off

Power is not being received from the DTE device

LNK

Unidentified

On

Link is good

LNK

Unidentified

Off

Link is broken

TX

Unidentified

Blinking

Data is being transmitted

TX

Unidentified

Off

Data is not being transmitted

RX

Unidentified

Blinking

Data is being received

RX

Unidentified

Off

Data is not being received

COL

Unidentified

On

Collision detected on network

COL

Unidentified

Off

No collision detected on network

MISCELLANEOUS TECHNICAL NOTES

SW1/2 - 4 control the PHY settings. The exact configuration information is unavailable.
