Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	6KB
Boot ROM	Not available
Network Transfer Rate	100Mbps (200Mbps full duplex)
Topology	Star
Wiring Type	Fiber optic cable
Data Bus	32-bit PCI

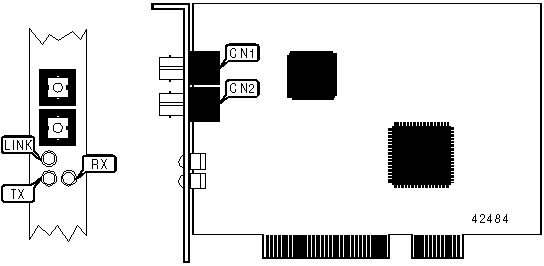

CONNECTIONS
Function	Label	Function	Label
Fiber optic ST connector - transmit	CN1	Fiber optic ST connector - receive	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LINK	Green	On	Network connection is good
LINK	Red	On	Network connection is broken
RX	Yellow	Blinking	Data is being received
RX	Yellow	Off	Data is not being received
TX	Green	Blinking	Data is being transmitted
TX	Green	Off	Data is not being transmitted
Note:With both the TX & RX LED’s lit up, the card is either using full-duplex mode or there is a data collision present.
