Card Type	Ethernet transceiver
Network Transfer Rate	10Mbps
Data Bus	AUI via DB-15 connector
Topology	Linear Bus
Wire Type	AUI transceiver via DB-15 port

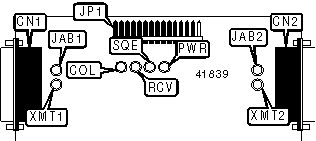

CONNECTIONS
Function	Label	Function	Label
AUI port 1 via DB-15 connector	CN1	AUI port 2 via DB-15 connector	CN2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1 pins 1 - 2	Unidentified
»	Factory configured - do not alter	JP1 pin 8	Unidentified
»	Factory configured - do not alter	JP1 pins 11 - 30	Unidentified

MASTER SQE HEARTBEAT CONFIGURATION
Setting		JP1
»	Enabled	Pins 4 & 5 closed
	Disabled	Pins 3 & 4 closed

PORT 1 SQE HEARTBEAT CONFIGURATION
Setting	JP1/pins 6 & 7
Enabled	Closed
Disabled	Open

PORT 2 SQE HEARTBEAT CONFIGURATION
Setting	JP1/pins 9 & 10
Enabled	Closed
Disabled	Open

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
JAB1	Yellow	On	Jabber detected on port 1
JAB1	Yellow	Off	Jabber not detected on port 1
XMT1	Green	On	Port 1 is transmitting data to the network
XMT1	Green	Off	Port 1 is not transmitting data to the network
XMT2	Green	On	Port 2 is transmitting data to the network
XMT2	Green	Off	Port 2 is not transmitting data to the network
JAB2	Yellow	On	Jabber detected on port 2
JAB2	Yellow	Off	Jabber not detected on port 2
COL	Red	On	Network collision detected
COL	Red	Off	Network collision not detected
RCV	Yellow	On	Transceiver is receiving data from the network
RCV	Yellow	Off	Transceiver is not receiving data from the network
SQE	Yellow	On	SQE heartbeat signal enabled
SQE	Yellow	Off	SQE heartbeat signal disabled
PWR	Green	On	Power is on
PWR	Green	Off	Power is off
