IBM CORPORATION

NETWORK ADAPTER UNIT

NIC Type

Unidentified

Network Transfer Rate

Unidentified

Data Bus

8-bit ISA

Topology

Star

Wire Type

RG-59B/U 75ohm coaxial

Boot ROM

Not available

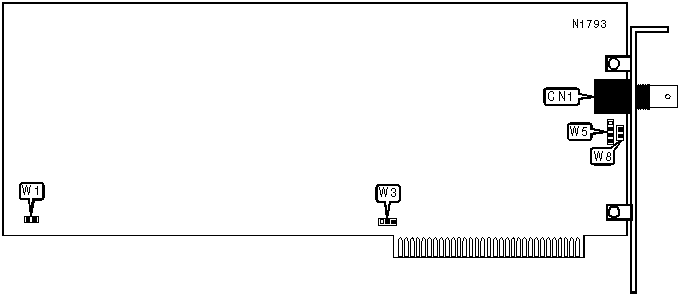

CONNECTIONS

Function

Label

RG-59B/U 75ohm coaxial connector

CN1

USER CONFIGURABLE SETTINGS

Setting

Label

Position

Boot ROM disabled

W1

Closed

Boot ROM enabled

W1

Open

Card will use IRQ2

W3

Pins 2 & 3 closed

Card will use IRQ3

W3

Pins 1 & 2 closed

BIOS enabled

W8

Closed

BIOS disabled

W8

Open

BASE I/O ADDRESS

Setting

W5

360h

Pins 2 & 3 closed

368h

Pins 1 & 2, 3 & 4 closed
