KYE INTERNATIONAL CORPORATION

GE2000 PNP

NIC Type

Ethernet

Network Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Linear Bus, Star

Wiring Type

Unshielded twisted pair

AUI transceiver

RG-58A/U 50ohm coaxial

Boot ROM

Available

CONNECTIONS

Function

Label

Function

Label

AUI transceiver

CN1

RG-58A/U 50ohm coaxial port

CN3

Unshielded twisted pair port

CN2

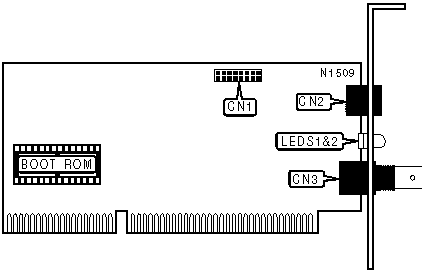

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

10Base-T network connection is good

LED1

Green

Off

10Base-T network connection is broken

LED2

Amber

Blinking

Data is being transmitted/received

LED2

Amber

Off

Data is not being transmitted/received
