LANCAST
4116-34
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8/16-bit ISA |
|
Topology |
Linear bus Star |
|
Wiring Type |
RG-58A/U 50ohm coaxial Unshielded twisted pair |
|
Boot ROM |
Available |
|

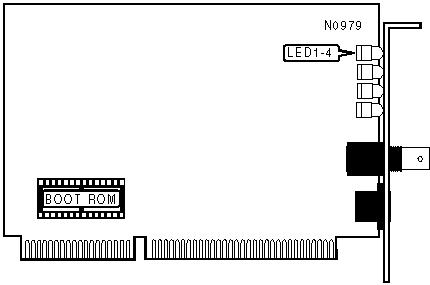

DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
On |
Data is being transmitted/received |
|
LED1 |
Yellow |
Off |
Data is not being transmitted/received |
|
LED2 |
Yellow |
On |
Network colisions detected |
|
LED2 |
Yellow |
Off |
No network colisions detected |
|
LED3 |
Green |
On |
Network connection is goood |
|
LED3 |
Green |
Off |
Network connection is broken |
|
LED4 |
Yellow |
On |
Polarity correction enabled |
|
LED4 |
Yellow |
Off |
Polarity correction disabled |
