LONGSHINE MICROSYSTEM, INC.

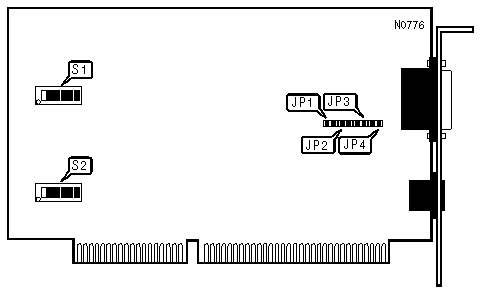

LCS-8636
NIC Type |
Token Ring |
Transfer Rate |
4/16Mbps |
Data Bus |
16-bit ISA |
Topology |
Ring |
Wiring Type |
AUI transceiver via DB-15 port Unshielded twisted pair |
Boot ROM |
Not available |
BASE MEMORY ADDRESS SELECT | |||||||
Address |
S1/1 |
S1/2 |
S1/3 |
S1/4 |
S1/5 |
S1/6 | |
» |
CC00h |
On |
Off |
Off |
On |
On |
Off |
B000h |
Off |
On |
On |
Off |
Off |
Off | |
B200h |
Off |
On |
On |
Off |
Off |
On | |
B400h |
Off |
On |
On |
Off |
On |
Off | |
B600h |
Off |
On |
On |
Off |
On |
On | |
B800h |
Off |
On |
On |
On |
Off |
Off | |
BA00h |
Off |
On |
On |
On |
Off |
On | |
BC00h |
Off |
On |
On |
On |
On |
Off | |
BE00h |
Off |
On |
On |
On |
On |
On | |
C000h |
On |
Off |
Off |
Off |
Off |
Off | |
C200h |
On |
Off |
Off |
Off |
Off |
On | |
C400h |
On |
Off |
Off |
Off |
On |
Off | |
C600h |
On |
Off |
Off |
Off |
On |
On | |
C800h |
On |
Off |
Off |
On |
Off |
Off |
BASE MEMORY ADDRESS SELECT(CONTINUED) | ||||||
Address |
S1/1 |
S1/2 |
S1/3 |
S1/4 |
S1/5 |
S1/6 |
CA00h |
On |
Off |
Off |
On |
Off |
On |
CE00h |
Off |
On |
Off |
On |
On |
On |
D000h |
On |
Off |
On |
Off |
Off |
Off |
D200h |
On |
Off |
On |
Off |
Off |
On |
D400h |
On |
Off |
On |
Off |
On |
Off |
D600h |
On |
Off |
On |
Off |
On |
On |
D800h |
On |
Off |
On |
On |
Off |
Off |
DA00h |
On |
Off |
On |
On |
Off |
On |
DC00h |
On |
Off |
On |
On |
On |
Off |
DE00h |
On |
Off |
On |
On |
On |
On |
E000h |
On |
On |
Off |
Off |
Off |
Off |
E200h |
On |
On |
Off |
Off |
Off |
On |
E400h |
On |
On |
Off |
Off |
On |
Off |
E600h |
On |
On |
Off |
Off |
On |
On |
E800h |
On |
On |
Off |
On |
Off |
Off |
EA00h |
On |
On |
Off |
On |
Off |
On |
EC00h |
On |
On |
Off |
On |
On |
Off |
EE00h |
On |
On |
Off |
On |
On |
On |
INTERRUPT SELECT | |||
IRQ |
S2/1 |
S2/2 | |
» |
IRQ2 |
Off |
Off |
IRQ3 |
Off |
On | |
IRQ6 |
On |
Off | |
IRQ7 |
On |
On |
SHARED RAM | |||
Size |
S2/3 |
S2/4 | |
» |
16KB |
Off |
On |
8KB |
Off |
Off | |
32KB |
On |
Off | |
64KB |
On |
On |
DATA TRANSFER RATE | ||
Rate |
S2/5 | |
» |
16Mbps |
On |
4Mbps |
Off |
I/O ADDRESS SELECT | ||
Address |
S2/6 | |
» |
A20 - A23h |
Off |
A24 - A27h |
On |
CABLE TYPE | ||||
Type |
JP1 |
JP2 |
JP3 |
JP4 |
Thick Ethernet |
Open |
Open |
Open |
Open |
Unshielded twisted pair |
Closed |
Closed |
Closed |
Closed |
