LANTECH TECHNOLOGY, INC.
NE2000 COMPATIBLE ETHERNET ADAPTER
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
Unshielded Twisted Pair RG58A/U 50ohm coaxial cable |
|
Boot ROM |
Available |
|

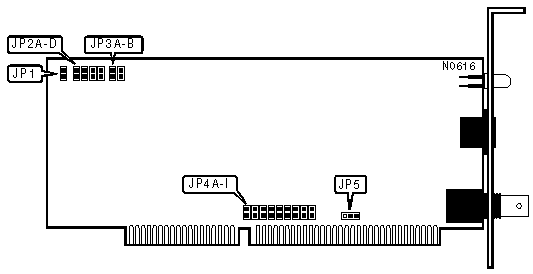

COMPATIBILITY MODE | |
|
Mode |
JP1 |
|
Normal operation |
Open |
|
Compatible mode |
Closed |
|
BOOT ROM ADDRESS | |||||
|
Address |
JP2A |
JP2B |
JP2C |
JP2D | |
|
Disabled |
Open |
Open |
Open |
Open | |
|
C0000h |
Open |
Closed |
Closed |
Closed | |
|
C4000h |
Closed |
Closed |
Closed |
Closed | |
| » |
C8000h |
Closed |
Closed |
Closed |
Open |
|
CC000h |
Closed |
Closed |
Closed |
Open | |
|
D0000h |
Closed |
Closed |
Open |
Closed | |
|
D4000h |
Closed |
Closed |
Open |
Closed | |
|
D8000h |
Closed |
Closed |
Open |
Open | |
|
DC000h |
Closed |
Closed |
Open |
Open | |
|
E0000h |
Closed |
Open |
Closed |
Closed | |
|
BASE I/O ADDRESS | |||
|
Address |
JP3A |
JP3B | |
| » |
300h |
Open |
Open |
|
320h |
Open |
Closed | |
|
340h |
Closed |
Open | |
|
360h |
Closed |
Closed | |
|
CABLE TYPE | |
|
Type |
JP5 |
|
Unshielded twisted pair |
Pins 1 & 2 closed |
|
RG58A/U 50ohm coaxial |
Pins 2 & 3 closed |
|
DIAGNOSTIC LED | |
|
LED Status |
Condition |
|
On |
Link integrity exists |
|
Off |
Link integrity broken |
|
Note:LED is functional only when card is installed in 10BaseT network. | |
