KATRON TECHNOLOGIES, INC.

ET-16T

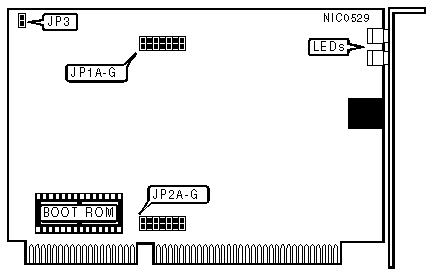

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

16-bit ISA

Topology

Star

Wiring Type

Unshielded twisted pair

Boot ROM

Available

I/O BASE ADDRESS

Address

JP1A

JP1B

»

300h

Pins 2 & 3 closed

Pins 2 & 3 closed



320h

Pins 1 & 2 closed

Pins 2 & 3 closed



340h

Pins 2 & 3 closed

Pins 1 & 2 closed



360h

Pins 1 & 2 closed

Pins 1 & 2 closed

COMPATIBILITY MODE

Setting

JP1C

»

Disabled

Pins 2 & 3 cosed



Enabled

Pins 1 & 2 closed

Note:On some systems the data bus timing is not truly IBM PC/AT compatible. If the card is not initializing, enabling compatibility mode may allow the card to operate properly.

BOOT ROM ADDRESS

Address

JP1D

JP1E

JP1F

»

C0000 - C1FFFh

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



C4000 - C5FFFh

PIns 1 & 2 closed

Pins 2 & 3 closed

Pins 2 & 3 closed



C8000 - C9FFFh

Pins 2 & 3 closed

PIns 1 & 2 closed

Pins 2 & 3 closed



CC000 - CDFFFh

PIns 1 & 2 closed

PIns 1 & 2 closed

Pins 2 & 3 closed



D0000 - D1FFFh

Pins 2 & 3 closed

Pins 2 & 3 closed

PIns 1 & 2 closed



D4000 - D5FFFh

PIns 1 & 2 closed

Pins 2 & 3 closed

PIns 1 & 2 closed



D8000 - D9FFFh

Pins 2 & 3 closed

PIns 1 & 2 closed

PIns 1 & 2 closed



DC000 - DDFFFh

PIns 1 & 2 closed

PIns 1 & 2 closed

PIns 1 & 2 closed

BOOT ROM

Setting

JP1G

»

Disabled

Pins 2 & 3 Closed



Enabled

Pins 1 & 2 Closed

INTERRUPT REQUEST

IRQ

JP2A

JP2B

JP2C

JP2D

JP2E

JP2F

JP2G



2/9

Open

Open

Open

Open

Open

Open

Closed

»

3

Open

Open

Open

Open

Open

Closed

Open



4

Open

Open

Open

Open

Closed

Open

Open



5

Open

Open

Open

Closed

Open

Open

Open



10

Open

Open

Closed

Open

Open

Open

Open



11

Open

Closed

Open

Open

Open

Open

Open



12

Closed

Open

Open

Open

Open

Open

Open

CONNECTORS

Function

Location

External LED1

JP4

Note:The external LED1 functions exactly as LED1 in the following table.

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Twisted pair network connection is good

LED1

Green

Blinking

Twisted pair network connection is broken

LED2

Yellow

Constantly On

Twisted pair receive wires are reversed and corrected

LED2

Yellow

Intermittent Blinking

Card is transmitting for an extended time

LED2

Yellow

Off

Normal operation

LED3

Green

On

Data is being transmitted or received

LED3

Green

Off

Data is not being transmitted or received

LED4

Yellow

On

Collision detected on network

LED4

Yellow

Off

Normal operation
