INTELLICOM, INC.
TPAIR-406, 6-PORT 10BASE/T HUB CARD
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8/16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Shielded/Unshielded twisted pair (6 RJ-45 ports) |
|
Boot ROM |
Not available |
|

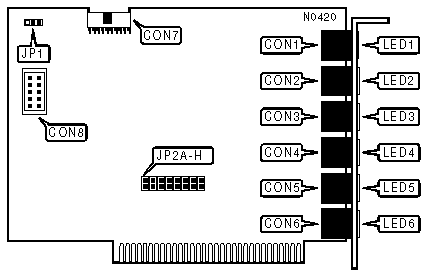

CONNECTORS | |
|
Funciton |
Location |
|
Inter-bus connector |
CON7 |
|
TPair-410 AUI connector |
CON8 |
|
Note:The Inter-bus connector is used to connect the card to other TPair-406's and TPair-426's to form a Hub-group. Up to four TPair 406's or three TPair-406's and one TPair-426 can be attached in a cascade fashion via the Inter-bus connectors and the supplied ribbon cable. The TPair-410 AUI connector is used to connect a TPair-406 to a TPair-410. Only one TPair-410 may be used per Hub-group. | |
|
SLAVE/MASTER MODE | ||
|
Setting |
JP1 | |
| » |
Master |
Pins 1 & 2 Closed |
|
Slave |
Pins 2 & 3 Closed | |
|
Note:If the card is connected to a TPair-426, the card must be set to slave. If the card is connected only to other TPair-406's or TPair-406's and a single TPair-410, one of the TPair-406 cards must be set to Master and the
remaining TPair-406's must be set to slave.
| ||
|
I/O BASE ADDRESS | |||||||||
|
Address |
JP2A |
JP2B |
JP2C |
JP2D |
JP2E |
JP2F |
JP2G |
JP2H | |
| » |
300h |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
310h |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
320h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
330h |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
340h |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
350h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
360h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
370h |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Network connection is good (CON1) |
|
LED1 |
Off |
Network connection is broken (CON1) |
|
LED2 |
On |
Network connection is good (CON2) |
|
LED2 |
Off |
Network connection is broken (CON2) |
|
LED3 |
On |
Network connection is good (CON3) |
|
LED3 |
Off |
Network connection is broken (CON3) |
|
LED4 |
On |
Network connection is good (CON4) |
|
LED4 |
Off |
Network connection is broken (CON4) |
|
LED5 |
On |
Network connection is good (CON5) |
|
LED5 |
Off |
Network connection is broken (CON5) |
|
LED6 |
On |
Network connection is good (CON6) |
|
LED6 |
Off |
Network connection is broken (CON6) |
