LONGSHINE MICROSYSTEM, INC.

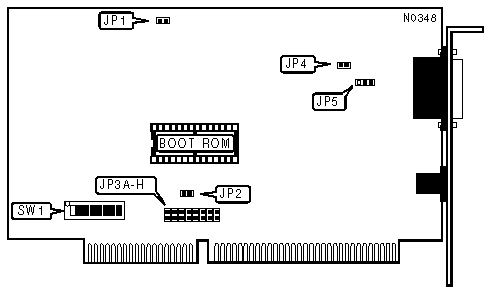

LCS-8634T (REV. A)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Shielded/Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
CABLE TYPE | ||
|
Type |
JP1 | |
| » |
Shielded/Unshielded twisted pair |
Closed |
|
AUI transceiver via DB-15 port |
Open | |
|
COMPATABILITY MODE | ||
|
Setting |
JP2 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
Note:Some systems use non-standard timing. If your system does not work with this card, set this option to
| ||
|
INTERUPT REQUEST | |||||||||
|
IRQ |
JP3A |
JP3B |
JP3C |
JP3D |
JP3E |
JP3F |
JP3G |
JP3H | |
| » |
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
4 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
5 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
11 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
12 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
BOOT ROM | ||
|
Setting |
JP4 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
LINK INTEGRITY TEST | ||
|
Setting |
JP5 | |
| » |
Disabled |
Pins 2 & 3 closed |
|
Enabled |
Pins 1 & 2 closed- | |
|
Note:Link integrity testing is only operational when the cable type is shielded/unshielded twisted pair. | ||
|
BASE MEMORY ADDRESS | ||||||
|
Base Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 | |
| » |
C800h |
On |
On |
Off |
On |
On |
|
CA00h |
On |
On |
Off |
On |
Off | |
|
CC00h |
On |
On |
Off |
Off |
On | |
|
CE00h |
On |
On |
Off |
Off |
Off | |
|
D000h |
On |
Off |
On |
On |
On | |
|
D200h |
On |
Off |
On |
On |
Off | |
|
D400h |
On |
Off |
On |
Off |
On | |
|
D600h |
On |
Off |
On |
Off |
Off | |
|
D800h |
On |
Off |
Off |
On |
On | |
|
DA00h |
On |
Off |
Off |
On |
Off | |
|
DC00h |
On |
Off |
Off |
Off |
On | |
|
DE00h |
On |
Off |
Off |
Off |
Off | |
|
I/O BASE ADDRESS | |||
|
Address |
SW1/6 |
SW1/7 |
SW1/8 |
|
300h |
On |
On |
On |
|
320h |
On |
On |
Off |
|
340h |
On |
Off |
On |
|
360h |
On |
Off |
Off |
|
380h |
Off |
On |
On |
|
3A0h |
Off |
On |
Off |
|
3C0h |
Off |
Off |
On |
|
3E0h |
Off |
Off |
Off |
