GARRETT COMMUNICATIONS

MAGNUM TP1

Card Type

Ethernet Transceiver

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Not available

Network Transfer Rate

10Mbps

Topology

Linear Bus, Star

Wiring Type

Shielded twisted pair, Unshielded twisted pair

AUI transceiver via DB-15 port

Data Bus

External

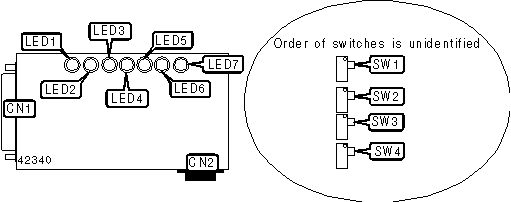

CONNECTIONS

Function

Label

Function

Label

AUI transceiver via DB-15

CN1

UTP/STP connector (RJ-45)

CN2

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Automatic correction for reversed polarity enabled

SW1

On



Automatic correction for reversed polarity disabled

SW1

Off

»

Unshielded twisted pair

SW2

Off



Shielded twisted pair

SW2

On

»

10BASE-T enabled

SW3

On



Starlan 10 (ATT) polarity on the segment

SW3

Off

»

SQE enabled

SW4

On



SQE disabled

SW4

Off

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection established

LED1

Green

Off

Network connection is not established

LED2

Yellow

On

Collision has occurred

LED2

Yellow

Off

Collision has not occurred

LED3

Green

Blinking

Data is being received

LED3

Green

Off

Data is not being received

LED4

Green

On

Data is being transmitted

LED4

Green

Off

Data is not being transmitted

LED5

Yellow

On

Polarity error

LED5

Yellow

Off

No polarity error

LED6

Yellow

On

SQE test feature enabled

LED6

Yellow

Off

SQE test feature disabled

LED7

Green

On

Power is on

LED7

Green

Off

Power is off

MISCELLANEOUS TECHNICAL NOTES

The AUI port should be directly connected to the workstation. If you cannot connect to the workstation, an AUI drop cable (which cannot exceed 3 feet in length) may be used.
