FORE SYSTEMS, INC.

FORERUNNER LE155MBPS-ST

Card Type

Network Interface Card

NIC Type

ATM

Maximum Onboard Memory

128Kb RAM

Boot ROM

Not available

Network Transfer Rate

155Mbps

Topology

Ring

Wiring Type

Fiber optic cable ST

Data Bus

32-bit PCI

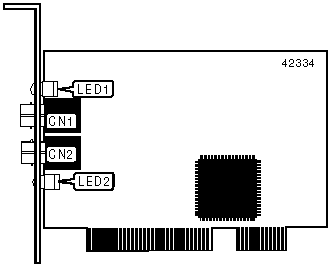

CONNECTIONS

Function

Label

Function

Label

Fiber optic connection - ST receive

CN1

Fiber optic connection - ST transmit

CN2

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Data is being received

LED1

Green

Off

Data is not being received

LED1

Yellow

On

Network connection is broken

LED2

Green

On

Data is being transmitted

LED2

Green

Off

Data is not being transmitted

LED2

Yellow

On

Alarm condition declared (trouble with the receiving device)
