EDIMAX COMPUTER COMPANY

EP-3020A (BNC & UTP)

Card Type

Ethernet

Data Bus

Parallel

Maximum network Rate

10Mbps

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Boot ROM

Not available

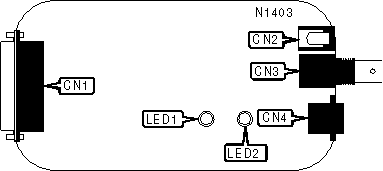

CONNECTIONS

Function

Label

Function

Label

Parallel port

CN1

RG-58A/U 50ohm coaxial port

CN3

DC power port

CN2

Unshielded twisted pair port

CN4

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

Blinking

Data is transmitted/received

LED1

Green

Off

Data is not being transmitted/received

LED2

Red

On

Power is on

LED2

Red

Off

Power is off
