EDIMAX COMPUTER COMPANY

ETHERNET 10 BASE-2 POCKET LAN ADAPTER

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

External

Topology

Linear Bus

Wiring Type

RG-58A/U 50ohm coaxial

Boot ROM

Not available

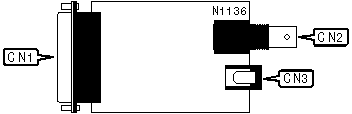

CONNECTIONS

Function

Label

Function

Label

25-pin parallel port

CN1

DC power in

CN3

RG-58A/U 50ohm coaxial

CN2
