HEWLETT-PACKARD COMPANY

HP 27250A

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

8-bit ISA

Topology

Linear bus

Wiring Type

AUI transceiver via DB-15 port

RG-58A/U 50ohm coaxial

Boot ROM

Not available

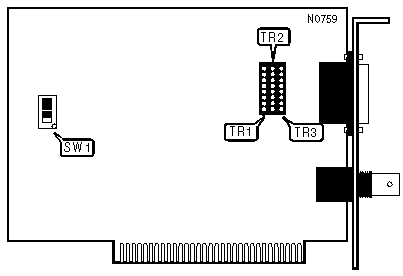

I/O ADDRESS SELECT

Address

SW1/1

SW1/2

SW1/3

»

300h

On

Off

Off



200h

Off

Off

Off



240h

Off

Off

On



280h

Off

On

Off



2C0h

Off

On

On



320h

On

Off

On



340h

On

On

Off

CABLE TYPE

Type

TR1

TR2

TR3

»

RG-58A/U 50ohm coaxial

Installed

Installed

Not installed



AUI transceiver via DB-15 port

Not installed

Installed

Installed

FACTORY CONFIGURED SETTINGS

Switch

Setting

SW1/4

N/
