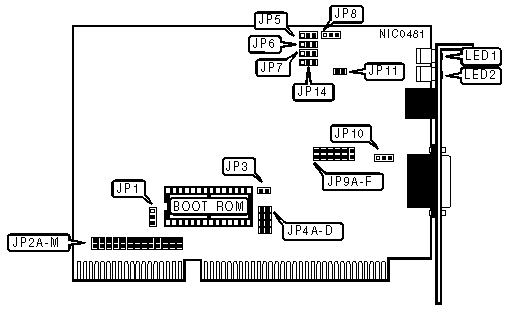

EDIMAX COMPUTER COMPANY
2000T V2.4, EN-6360 V2.4
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
COMPATIBILITY MODE | ||
|
Setting |
JP1 | |
| » |
Disabled |
Pins 1 & 2 closed |
|
Enabled |
PIns 2 & 3 closed | |
|
Note: On some systems the data bus timing is not truly IBM PC/AT compatible. If the card is not initializing, enabling the compatibility mode may allow the card to function properly. | ||
|
INTERRUPT SETTINGS | |||||||||||
|
IRQ |
JP2A |
JP2B |
JP2C |
JP2D |
JP2E |
JP2F |
JP2G |
JP2H |
JP2I |
JP2J |
JP2K |
|
2/9 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
4 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
5 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
6 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
7 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
11 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
12 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
14 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
I/O BASE ADDRESS | |||
|
Address |
JP2L |
JP2M | |
| » |
300h |
Closed |
Closed |
|
320h |
Closed |
Open | |
|
340h |
Open |
Closed | |
|
360h |
Open |
Open | |
|
BOOT ROM | ||
|
Setting |
JP3 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
BOOT ROM ADDRESS | |||||
|
Address |
JP4A |
JP4B |
JP4C |
JP4D | |
|
C0000h |
Closed |
Closed |
Closed |
Closed | |
|
C4000h |
Closed |
Closed |
Closed |
Open | |
| » |
C8000h |
Closed |
Closed |
Open |
Closed |
|
CC000h |
Closed |
Closed |
Open |
Open | |
|
D0000h |
Closed |
Open |
Closed |
Closed | |
|
D4000h |
Closed |
Open |
Closed |
Open | |
|
D8000h |
Closed |
Open |
Open |
Closed | |
|
DC000h |
Closed |
Open |
Open |
Open | |
|
SIGNAL QUALITY ERROR (SQE) TEST | ||
|
Setting |
JP5 | |
| » |
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed | |
|
Note:Signal Quality Error (SQE) is a test of the collision circuitry and path. Link integrity must be enabled for SQE to be enabled. | ||
|
CABLE LENGTH SELECT | ||
|
Setting |
JP7 | |
| » |
185meters |
Pins 1 & 2 closed |
|
305meters |
Pins 2 & 3 closed | |
|
Note: All cards on the network segment must have this option set the same. Link integrity must be enabled to select long cable length. | ||
|
LINK INTEGRITY | ||
|
Setting |
JP8 | |
| » |
Enabled |
Pins 2 & 3 closed |
|
Disabled |
Pins 1 & 2 closed | |
|
Note:If this option is disabled, SQE is also disabled and Cable Length is set to 185 meters. | ||
|
CABLE TYPE | ||
|
Type |
JP9A - JP9F |
JP10 |
|
AUI transceiver via DB-15 port |
Open |
Pins 1 & 2 closed |
|
Unshielded twisted pair |
Closed |
Pins 2 & 3 closed |
|
AUTOPOLARITY | ||
|
Setting |
JP14 | |
| » |
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed | |
|
Note: When disabled, if the network wire polarities are reversed, the card will be damaged. | ||
|
FACTORY CONFIGURED SETTINGS | |
|
Jumper |
Setting |
|
JP6 |
Unused |
|
CONNECTORS | |
|
Setting |
Location |
|
External power LED. |
JP11 |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
Off |
Normal operation |
|
LED1 |
Yellow |
On |
A reversed twisted pair is detected and corrected |
|
LED2 |
Green |
On |
Twisted pair network connection is good |
|
LED2 |
Green |
Off |
Twisted pair network connection is broken |
