Card Type	Network Interface Card
NIC Type	Token Ring
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	4Mbps, 16Mbps
Topology	Ring
Wiring Type	Shielded twisted pair (DB-9), Unshielded twisted pair (RJ-45)
Data Bus	16-bit ISA

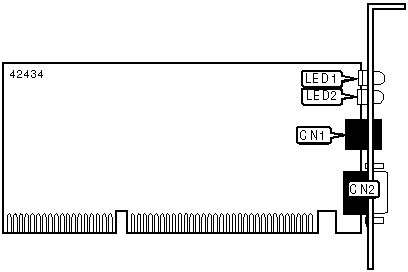

CONNECTIONS
Function	Label	Function	Label
UTP connector (RJ-45)	CN1	STP connector (DB-9)	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Network connection is good
LED1	Unidentified	Off	Network connection is broken
LED2	Unidentified	On	Data is being transmitted
LED2	Unidentified	Off	Data is not being transmitted
