Device Type	Transceiver
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Star
Wiring Type	Fiber Optic cable - SMA
Data Bus	External

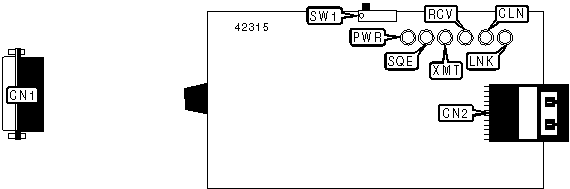

CONNECTIONS
Function	Label	Function	Label
AUI transceiver via DB-15	CN1	Fiber optic connector (SMA)	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	SQE test function enabled	SW1	On
	SQE test function disabled	SW1	Off

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
PWR	Green	On	Power is on
PWR	Green	Off	Power is off
SQE	Yellow	On	Signal Quality Error test function is enabled
SQE	Yellow	Off	Signal Quality Error test function is disabled
XMT	Green	Blinking	Data is being transmitted
XMT	Green	Off	Data is not being transmitted
RCV	Yellow	Blinking	Data is being received
RCV	Yellow	Off	Data is not being received
CLN	Red	Blinking	Collision detected on network
CLN	Red	Off	No collision detected on network
LNK	Green	On	Network connection is good
LNK	Green	Off	Network connection is broken
