DIAMOND FLOWER, INC.

NET-800P

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Not available

Network Transfer Rate

10Mbps

Topology

Star, linear bus

Wiring Type

RJ-45 Unshielded twisted pair

RG-58 A/U 50ohm coaxial

Data Bus

32-bit PCI

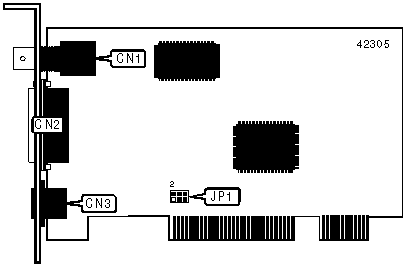

CONNECTIONS

Function

Label

Function

Label

RG-58 A/U 50ohm coaxial

CN1

RJ-45 UTP connector

CN3

AUI transceiver via DB-15

CN2



PCI INTERRUPT SELECTION

Setting

JP1

»

INTA

Pins 1 & 3 closed



INTB

Pins 2 & 4 closed



INTC

Pins 4 & 6 closed



INTD

Pins 3 & 5 closed
