CABLETRON SYSTEMS, INC.

COFOT-F1

Device Type

Media Adapter

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Not available

Network Transfer Rate

10Mbps

Topology

Star

Wiring Type

Unshielded twisted pair, RG-58A/U 50ohm coaxial

Fiber optic cable

Data Bus

External

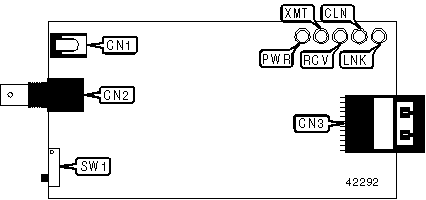

CONNECTIONS

Function

Label

Function

Label

Power jack

CN1

Fiber optic connector (SMA)

CN3

RG-58A/U connector

CN2



USER CONFIGURABLE SETTINGS

Function

Label

Position

RG-58AU 50ohm coaxial connector terminated internally

SW1

On

RG-58AU 50ohm coaxial connector terminated externally

SW1

Off

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

PWR

Green

On

Power is on

PWR

Green

Off

Power is off

XMT

Green

Blinking

Data is being transmitted from the coaxial port and received from the fiber optic port.

XMT

Green

Off

Data is not being transmitted from the coaxial port and received from the fiber optic port.

RCV

Yellow

Blinking

Data is being received from the coaxial port and transmitted from the fiber optic port

RCV

Yellow

Off

Data is not being received from the coaxial port and transmitted from the fiber optic port

CLN

Red

Blinking

Collision detected on network

CLN

Red

Off

No collision detected on network

LNK

Green

On

Fiber optic link is good

LNK

Green

Off

Fiber optic link is broken
