CISCO SYSTEMS, INC.

CDDI EISA HP SINGLE ATTACHMENT ADAPTER

Card Type

Network Interface Card

NIC Type

CDDI

Maximum Onboard Memory

Unidentified

Boot ROM

Unidentified

Network Transfer Rate

10Mbps

Topology

Ring

Wiring Type

Unshielded twisted pair

Data Bus

32-bit EISA

CONNECTIONS

Function

Label

Function

Label

UTP via RJ-45 connector

CN1

Unidentified

CN2

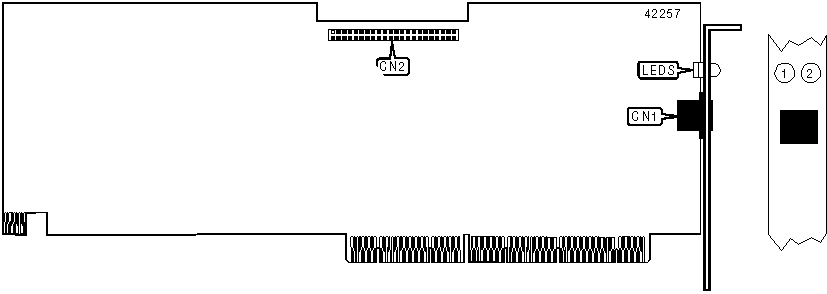

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Unidentified

On

Internal diagnostics tests passed

LED1

Unidentified

Off

Internal diagnostics tests failed

LED2

Unidentified

On

Network connection is good

LED2

Unidentified

Off

Network connection is broken
