CODENOLL TECHNOLOGY CORPORATION

CODENET-7198

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Not available

Network Transfer Rate

100Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

External

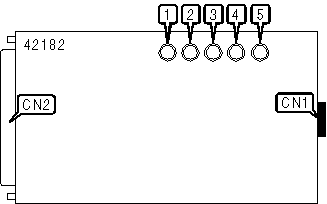

CONNECTIONS

Function

Label

Function

Label

UTP via RJ-45 connector

CN1

40-pin media independent interface connector - male

CN2

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Power enabled

LED1

Green

Off

Power disabled

LED2

Green

On

UTP link is good

LED2

Green

Off

UTP link is broken

LED3

Green

On

Data is being transmitted

LED3

Green

Off

Data is not being transmitted

LED4

Green

On

Data is being received

LED4

Green

Off

Data is not being received

LED5

Amber

On

Collision detected on network

LED5

Amber

Off

No collision detected on network
