CISCO SYSTEMS, INC.

WA-C432

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Unidentified

Network Transfer Rate

10Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

32-bit PCI

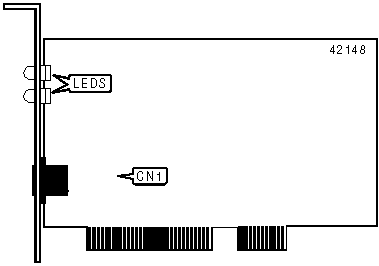

CONNECTIONS

Function

Label

UTP via RJ-45 connector

CN1

DIAGNOSTIC LED(S)

Green LED

Yellow LED

Condition

On

Off

Fiber Optic link is good

Off

On

Fiber Optic link is broken

On

On

Data is not being transmitted/received

Off

Off

Network connection is broken

Note: Exact location of LEDs is unidentified, refer to above for function of corresponding color.
