COMPU-SHACK PRODUCTION, GMBH
CS-FDDI EISA-MMF-DAS
|
Card Type |
Network Interface Card |
|
NIC Type |
FDDI |
|
Maximum Onboard Memory |
Unidentified |
|
Boot ROM |
Available (location unidentified) |
|
Network Transfer Rate |
100Mbps |
|
Topology |
Ring |
|
Wiring Type |
Fiber optic cable |
|
Data Bus |
16-bit EISA |
|

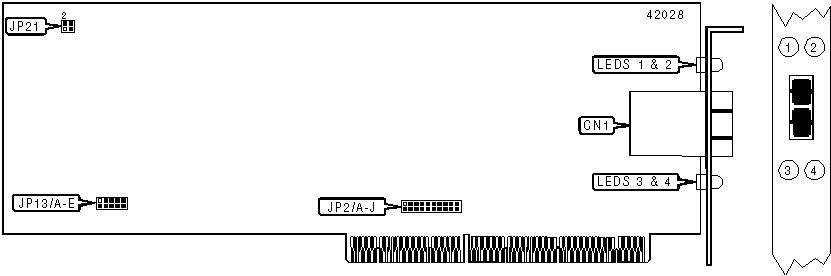

CONNECTIONS |
|
|
Function |
Label |
|
Fiber-optic connector via MIC |
CN1 |
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
Boot ROM disabled |
JP13/A |
Open |
|
|
Boot ROM enabled |
JP13/A |
Closed |
|
» |
Factory configured - do not alter |
JP13/E |
Unidentified |
|
» |
Factory configured - do not alter |
JP21/pins 1 & 2 |
Unidentified |
|
|
Hard configuration mode selected |
JP21/pins 3 & 4 |
Open |
|
|
Soft configuration mode selected |
JP21/pins 3 & 4 |
Closed |
|
BASE I/O ADDRESS SELECTION |
||||
|
Address |
JP13/B |
JP13/C |
JP13/D |
|
|
|
200h-21Fh |
Closed |
Closed |
Closed |
|
|
220h-23Fh |
Closed |
Closed |
Open |
|
|
240h-25Fh |
Closed |
Open |
Closed |
|
|
280h-29Fh |
Closed |
Open |
Open |
|
» |
300h-31Fh |
Open |
Closed |
Closed |
|
|
320h-33Fh |
Open |
Closed |
Open |
|
|
340h-35Fh |
Open |
Open |
Closed |
|
INTERRUPT SELECTION |
|||||||||||
|
IRQ |
JP2/A |
JP2/B |
JP2/C |
JP2/D |
JP2/E |
JP2/F |
JP2/G |
JP2/H |
JP2/I |
JP2/J |
|
|
|
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
|
4 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
» |
5 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
7 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
9 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
|
10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
|
11 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
12 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
14 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
DIAGNOSTIC LED(S) |
|||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Unidentified |
On |
See conditions in note below |
|
LED1 |
Unidentified |
Off |
See conditions in note below |
|
LED2 |
Unidentified |
On/Off |
Unidentified |
|
LED3 |
Yellow |
On |
Data is being transmitted/received |
|
LED3 |
Yellow |
Off |
Data is not being transmitted/received |
|
LED4 |
Green |
On |
Ring connection is good |
|
LED4 |
Green |
Off |
Ring connection is broken |
|
Note: LED1 varies depending on model. Red (On: Illegal connection, Off: Valid connection); or Orange (On: Line error alarm activated, Off: Line error alarm not activated). |
|||
|
TECHNICAL NOTE |
|
Note: When the board is operated in soft configuration mode, jumpers JP13 and JP2 must be open. JP21/pins 1 & 2 function to toggle I/O address selection. If an I/O address collision is detected during installation, the shunt on JP21/pins 1 & 2 can be changed (while the PC is running) to force the software to try the next larger I/O address. For example, if a collision is detected using I/O address 300h, removing shunt on JP21/pins 1 & 2 will force the software to try I/O address 320h. |
