DIGITAL EQUIPMENT CORPORATION

FIBER-OPTIC SAS CONTROLLER (DEFPA-AA),

FIBER-OPTIC SAS ADAPTER (DEFPA-AB)

Card Type

Network Interface Card

NIC Type

FDDI

Maximum Onboard Memory

Unidentified

Boot ROM

Unidentified

Network Transfer Rate

100Mbps

Topology

Ring

Wiring Type

Fiber optic cable

Data Bus

32-bit PCI

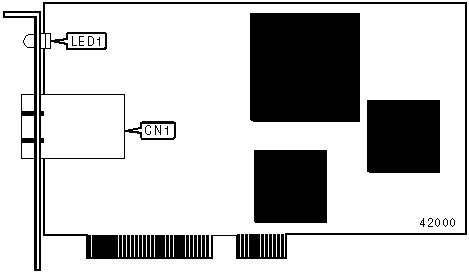

CONNECTIONS

Function

Label

Fiber-optic connector - duplex SC

CN1

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Green

On

Network connection is good

LED1

Green

Blinking

Network connection in progress

LED1

Green

Off

Network connection is broken

LED1

Red

On

See Note

LED1

Red

Blinking

Illegal topology

LED1

Red

Off

Network connection is broken

Note: If LED1 is red and on after system boots, indicates broken port or Link Confidence Test (LCT) failure; retry loop. If LED1 is red and on before system boots, indicates self-test failure.
