COMPEX, INC.

RL2000A-PNP TP

Card Type

Network Interface Card

NIC Type

Ethernet

Maximum Onboard Memory

Unidentified

Boot ROM

Available

Network Transfer Rate

10Mbps

Topology

Star

Wiring Type

Unshielded twisted pair

Data Bus

16-bit ISA

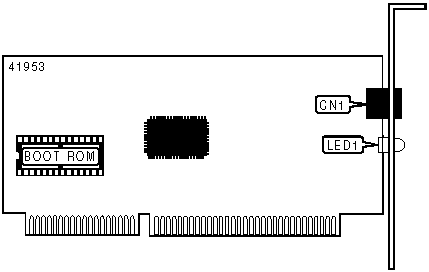

CONNECTIONS

Function

Label

UTP connector

CN1

DIAGNOSTIC LED(S)

Note: Function of LED is unidentified.
