CNET TECHNOLOGY, INC.

CN490E REV.A

NIC Type

Ethernet

Transfer Rate

10Mbps

Data Bus

SCSI

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Boot ROM

Not available

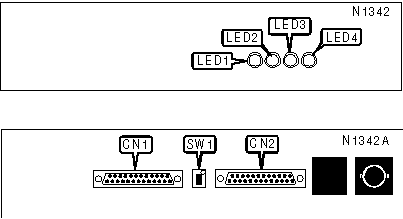

CONNECTIONS

Purpose

Location

SCSI connector

CN1

SCSI connector

CN2

CABLE TYPE SELECTION

Cable Type

SW1



Unshielded twisted pair

Off

»

RG-58A/U 50ohm coaxial

On

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Data is being transmitted

LED1

Yellow

Off

Data is not being transmitted

LED2

Yellow

On

Data is being received

LED2

Yellow

Off

Data is not being received

LED3

Red

On

10Base-T network connection is good

LED3

Red

Off

10Base-T network connection is broken

LED4

Red

On

Power on

LED4

Red

Off

Power off
