COGENT DATA TECHNOLOGIES, INC.

EMASTER+ EM110 TX ISA

NIC Type

Ethernet

Transfer Rate

10/100Mbps

Data Bus

16-bit ISA

Topology

Star

Wiring Type

Shielded twisted pair

Unshielded twisted pair

Boot ROM

Available

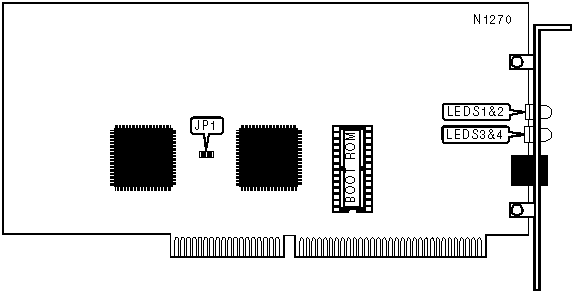

PLUG AND PLAY SELECTION

Setting

JP1

Enabled

Open

Disabled

Closed

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Network activity is detected at 10Mbps

LED1

Yellow

Off

Network activity is not detected at 10Mbps

LED2

Green

On

Network connection is good at 10Mbps

LED2

Green

Off

Network connection is broken at 10Mbps

LED3

Yellow

On

Network activity is detected at 100Mbps

LED3

Yellow

Off

Network activity is not detected at 100Mbps

LED4

Green

On

Network connection is good at 100Mbps

LED4

Green

Off

Network connection is broken at 100Mbps
