COGENT DATA TECHNOLOGIES, INC.

EMASTER+ EM110 T4 PCI COMBO

NIC Type

Ethernet

Transfer Rate

10/100Mbps

Data Bus

PCI

Topology

Linear Bus/Star

Wiring Type

Unshielded twisted pair

RG-58A/U 50ohm coaxial

Boot ROM

Not available

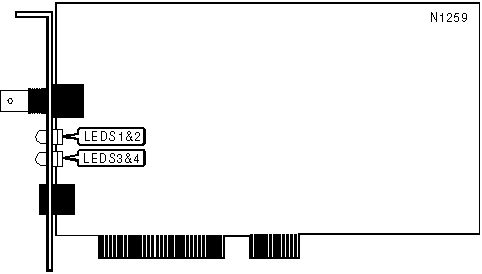

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED1

Yellow

On

Network activity is detected at 10Mbps

LED1

Yellow

Off

Network activity is not detected at 10Mbps

LED2

Green

On

10Base-T network connection is good at 10Mbps

LED2

Green

Off

10Base-T network connection is broken at 10Mbps

LED3

Yellow

On

Network activity is detected at 100Mbps

LED3

Yellow

Off

Network activity is not detected at 100Mbps

LED4

Green

Blinking

10Base-T network connection is good at 100Mbps

LED4

Green

Off

10Base-T network connection is broken at 100Mbps
