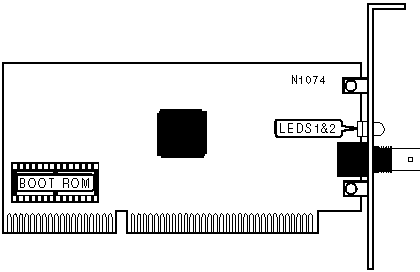

CNET TECHNOLOGY, INC.
CN200E PLUS REV. D
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
,
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
Power on |
|
LED1 |
Red |
Off |
Power off |
|
LED2 |
Yellow |
On |
Data is being transmitted/received |
|
LED2 |
Yellow |
Off |
Data is not being transmitted/received |
